Copper wires
Copper wires
Nexans Canada provides solution for copper electrode wire (soudronic wire) and copper wire for redraw. Nexans Canada produced drawn copper wire for redraw
Read moreCopper electrode wire (Soudronic wire) 0.048in
Nexans ref. 22000205
- Packaging: Box (lb)
- Nominal diameter of wires: 1.219 mm
- Minimum conductivity at 20°C: 99.1 % IACS
- Minimum Elongation: 25 %
- Minimum Tensile Strength: 245 MPa
Copper electrode wire (Soudronic wire) 0.050in
Nexans ref. 22000206
- Packaging: Box (lb)
- Nominal diameter of wires: 1.27 mm
- Minimum conductivity at 20°C: 99.1 % IACS
- Minimum Elongation: 25 %
- Minimum Tensile Strength: 245 MPa
Copper electrode wire (Soudronic wire) 0.054in
Nexans ref. 22000208
- Packaging: Box (lb)
- Nominal diameter of wires: 1.372 mm
- Minimum conductivity at 20°C: 99.1 % IACS
- Minimum Elongation: 25 %
- Minimum Tensile Strength: 245 MPa
Copper electrode wire (Soudronic wire) 0.059in
Nexans ref. 22000210
- Packaging: Box (lb)
- Nominal diameter of wires: 1.5 mm
- Minimum conductivity at 20°C: 99.1 % IACS
- Minimum Elongation: 25 %
- Minimum Tensile Strength: 245 MPa
Copper wire for redraw 10AWG hard
Nexans ref. 22000214
- Packaging: Box (lb)
- Nominal diameter of wires: 2.59 mm
- Minimum conductivity at 20°C: 96.2 % IACS
- Minimum Elongation: 1.2 %
- Minimum Tensile Strength: 445 MPa
Copper wire for redraw 10AWG soft
Nexans ref. 22000215
- Packaging: Box (lb)
- Nominal diameter of wires: 2.59 mm
- Minimum conductivity at 20°C: 99.1 % IACS
- Minimum Elongation: 25 %
- Minimum Tensile Strength: 245 MPa
Copper wire for redraw 11AWG hard
Nexans ref. 22000216
- Packaging: Box (lb)
- Nominal diameter of wires: 2.3 mm
- Minimum conductivity at 20°C: 96.2 % IACS
- Minimum Elongation: 1.1 %
- Minimum Tensile Strength: 450 MPa
Copper wire for redraw 12AWG hard
Nexans ref. 22000217
- Packaging: Box (lb)
- Nominal diameter of wires: 2.05 mm
- Minimum conductivity at 20°C: 96.2 % IACS
- Minimum Elongation: 1.1 %
- Minimum Tensile Strength: 455 MPa
Copper wire for redraw 12AWG soft
Nexans ref. 22000218
- Packaging: Box (lb)
- Nominal diameter of wires: 2.05 mm
- Minimum conductivity at 20°C: 99.1 % IACS
- Minimum Elongation: 25 %
- Minimum Tensile Strength: 245 MPa
Copper wire for redraw 13AWG hard
Nexans ref. 22000220
- Packaging: Box (lb)
- Nominal diameter of wires: 1.83 mm
- Minimum conductivity at 20°C: 96.2 % IACS
- Minimum Elongation: 1.1 %
- Minimum Tensile Strength: 455 MPa
Copper wire for redraw 14AWG hard
Nexans ref. 22000221
- Packaging: Box (lb)
- Nominal diameter of wires: 1.63 mm
- Minimum conductivity at 20°C: 96.2 % IACS
- Minimum Elongation: 1 %
- Minimum Tensile Strength: 455 MPa
Copper wire for redraw 14AWG soft
Nexans ref. 22000222
- Packaging: Box (lb)
- Nominal diameter of wires: 1.63 mm
- Minimum conductivity at 20°C: 99.1 % IACS
- Minimum Elongation: 25 %
- Minimum Tensile Strength: 245 MPa
Copper wire for redraw 7AWG hard
Nexans ref. 22000211
- Packaging: Box (lb)
- Nominal diameter of wires: 3.67 mm
- Minimum conductivity at 20°C: 96.2 % IACS
- Minimum Elongation: 1.3 %
- Minimum Tensile Strength: 435 MPa
Copper wire for redraw 7AWG soft
Nexans ref. 22000212
- Packaging: Box (lb)
- Nominal diameter of wires: 3.67 mm
- Minimum conductivity at 20°C: 99.1 % IACS
- Minimum Elongation: 25 %
- Minimum Tensile Strength: 245 MPa
Copper wire for redraw 8AWG soft
Nexans ref. 22000213
- Packaging: Box (lb)
- Nominal diameter of wires: 3.26 mm
- Minimum conductivity at 20°C: 99.1 % IACS
- Minimum Elongation: 25 %
- Minimum Tensile Strength: 245 MPa
Description
Description
Standards
-
ProductASTM B 1; ASTM B 3
Nexans Canada is leader in North America for copper electrode wire (soudronic wire).
Nexans Canada produced drawn copper wire for redraw. Wire diameter is between 7 et 16AWG (3.67mm – 1.22mm). Wire can be delivered hard or annealed.
Cold drawn Wire meets standard ASTM B1-01 for hard drawn copper wire and ASTM B3-01 for annealed copper wire.
Characteristics
Characteristics
Resources
Resources
Selling & delivery Information

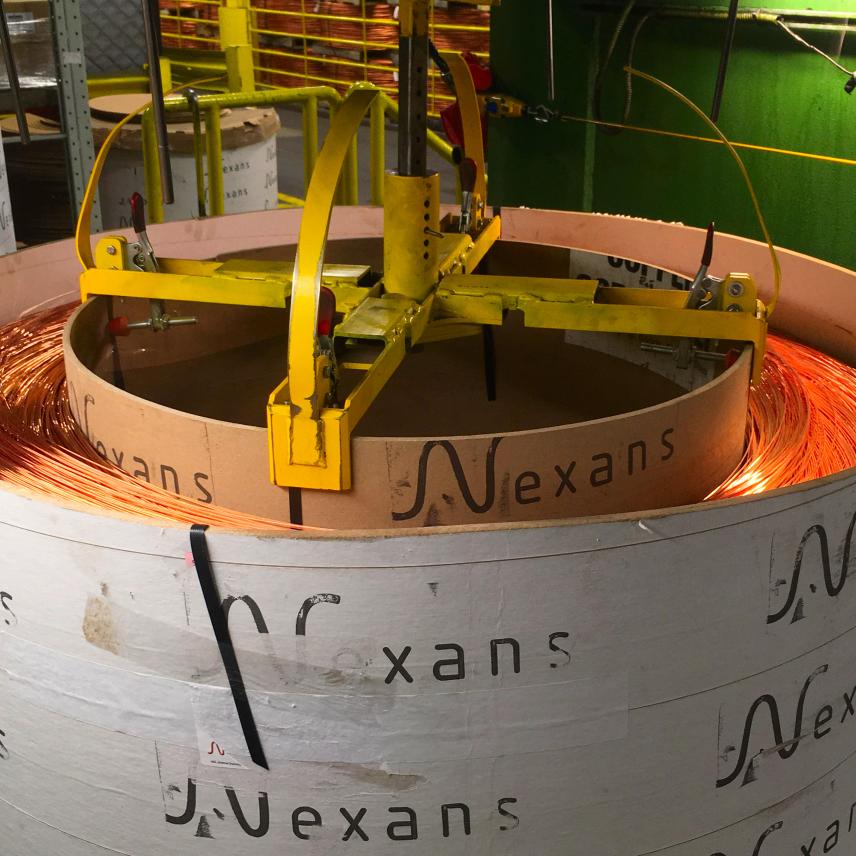

Drawn wire is packaged in cylindrical boxes (Diameter 122cm, height 125cm). Net weight is between 2000 and 5000lbs, these boxes are placed on wooden pallet, pallet dimensions are 122 cm x 122 cm and box is fixed by plastic straps
